Greatly steady and long-lifetime DO-214AC Transient Voltage Suppressors (TVS) SMA Series

Short Description:

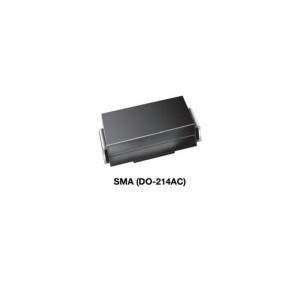

Packaging Style:?SMA(DO-214AC)

Introduction: YUNYI Transient Voltage Suppressors (TVS) xxx, whose chip is processed by Chemical Etching Method and PN junction is protected by PI glue without the side effect of cutting stress and rough edges. Greatly steady and long-lifetime DO-214AC Transient Voltage Suppressors (TVS) SMA Series is used for sensitive electronics protection against voltage transients. With the high quality strictly controlled under the system of IATF16949,ISO14001, ISO 9001:2005, OHSAS18001, VDA6.3, etc, YUNYI TVS can function well in complex and harsh environment.

Send email to us

Product Detail

Monitoring response time

Measuring range

Product Tags

Advantages of YUNYI's TVS:

1. DO-214AC, with larger size of chip, owns strong ability of reverse surge.

2. Low inductance

3. Competitive cost with high-level quality.

4. High production efficiency with short lead time.

5. High temperature reflow soldering

6. Small size, helping to optimize the circuit board space

Parameters of products:

Part Number		?V_RWM?	?V_BR@I_T		I_T	I_R @ V_RWM?	I_PP?	Vc @ I_PP?
（Uni）	（Bi）	Max（V）	Min(V)	Max (V)	mA	Max(μA)	A	V
SMAJ5.0A	SMAJ5.0CA	5.0	6.40	7.07	10	800	43.38	9.2
SMAJ6.0A	SMAJ6.0CA	6.0	6.67	7.37	10	800	38.83	10.3
SMAJ6.5A	SMAJ6.5CA	6.5	7.22	7.98	10	500	35.71	11.2
SMAJ7.0A	SMAJ7.0CA	7.0	7.78	8.60	10	200	33.33	12.0
SMAJ7.5A	SMAJ7.5CA	7.5	8.33	9.21	1	100	31.01	12.9
SMAJ8.0A	SMAJ8.0CA	8.0	8.89	9.83	1	50	29.41	13.6
SMAJ8.5A	SMAJ8.5CA	8.5	9.44	10.40	1	10	27.78	14.4
SMAJ9.0A	SMAJ9.0CA	9.0	10.00	11.10	1	5	25.97	15.4
SMAJ10A	SMAJ10CA	10.0	11.10	12.30	1	5	23.53	17.0
SMAJ11A	SMAJ11CA	11.0	12.20	13.50	1	5	21.98	18.2
SMAJ12A	SMAJ12CA	12.0	13.30	14.70	1	1	20.10	19.9
SMAJ13A	SMAJ13CA	13.0	14.40	15.90	1	1	18.60	21.5
SMAJ14A	SMAJ14CA	14.0	15.60	17.20	1	1	17.24	23.2
SMAJ15A	SMAJ15CA	15.0	16.70	18.50	1	1	16.39	24.4
SMAJ16A	SMAJ16CA	16.0	17.80	19.70	1	1	15.40	26.0
SMAJ17A	SMAJ17CA	17.0	18.90	20.90	1	1	14.49	27.6
SMAJ18A	SMAJ18CA	18.0	20.00	22.10	1	1	13.70	29.2
SMAJ19A	SMAJ19CA	19.0	21.10	23.30	1	1	13.00	30.8
SMAJ20A	SMAJ20CA	20.0	22.20	24.50	1	1	12.35	32.4
SMAJ22A	SMAJ22CA	22.0	24.40	26.90	1	1	11.27	35.5
SMAJ24A	SMAJ24CA	24.0	26.70	29.50	1	1	10.28	38.9
SMAJ26A	SMAJ26CA	26.0	28.90	31.90	1	1	9.50	42.1
SMAJ28A	SMAJ28CA	28.0	31.10	34.40	1	1	8.81	45.4
SMAJ30A	SMAJ30CA	30.0	33.30	36.80	1	1	8.26	48.4
SMAJ33A	SMAJ33CA	33.0	36.70	40.60	1	1	7.50	53.3
SMAJ36A	SMAJ36CA	36.0	40.00	44.20	1	1	6.88	58.1
SMAJ40A	SMAJ40CA	40.0	44.40	49.10	1	1	6.20	64.5
SMAJ43A	SMAJ43CA	43.0	47.80	52.80	1	1	5.76	69.4
SMAJ45A	SMAJ45CA	45.0	50.00	55.30	1	1	5.50	72.7
SMAJ48A	SMAJ48CA	48.0	53.30	58.90	1	1	5.17	77.4
SMAJ51A	SMAJ51CA	51.0	56.70	62.70	1	1	4.85	82.4
SMAJ54A	SMAJ54CA	54.0	60.00	66.30	1	1	4.59	87.1
SMAJ58A	SMAJ58CA	58.0	64.40	71.2	1	1	4.27	93.6
SMAJ60A	SMAJ60CA	60.0	66.70	73.7	1	1	4.13	96.8
SMAJ64A	SMAJ64CA	64.0	71.10	78.6	1	1	3.88	103
SMAJ70A	SMAJ70CA	70.0	77.80	86	1	1	3.54	113
SMAJ75A	SMAJ75CA	75.0	83.30	92.1	1	1	3.31	121
SMAJ78A	SMAJ78CA	78.0	86.70	95.8	1	1	3.17	126
SMAJ85A	SMAJ85CA	85.0	94.40	104	1	1	2.92	137
SMAJ90A	SMAJ90CA	90.0	100.00	111	1	1	2.74	146
SMAJ100A	SMAJ100CA	100.0	111.00	123	1	1	2.47	162
SMAJ110A	SMAJ110CA	110.0	122.00	135	1	1	2.26	177
SMAJ120A	SMAJ120CA	120.0	133.00	147	1	1	2.07	193
SMAJ130A	SMAJ130CA	130.0	144.00	159	1	1	1.91	209
SMAJ140A	SMAJ140CA	140.0	155.00	171	1	1	1.76	226.8
SMAJ150A	SMAJ150CA	150.0	167.00	185	1	1	1.65	243
SMAJ160A	SMAJ160CA	160.0	178.00	197	1	1	1.54	259
SMAJ200A	SMAJ200CA	200.0	224.00	247	1	1	1.23	324
SMAJ220A	SMAJ220CA	220.0	246.00	272	1	1	1.12	356
SMAJ250A	SMAJ250CA	250.0	279.00	309	1	1	0.99	405
SMAJ300A	SMAJ300CA	300.0	335.00	371	1	1	0.82	486
SMAJ350A	SMAJ350CA	350.0	391.00	432	1	1	0.71	567
SMAJ400A	SMAJ400CA	400.0	447.00	494	1	1	0.62	648
SMAJ440A	SMAJ440CA	440.0	492.00	543	1	1	0.56	713
