Brilliant Performance YUNYI Zener Diode SMA (DO-214AC)

Short Description:

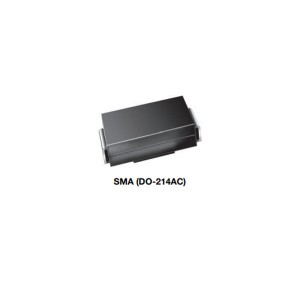

Product Package:?SMA(DO-214AC)

Introduction: YUNYI Zener Diode SMA(DO-214AC) is a surface-contact transistor made of silicon material. This diode is a semiconductor device with very high resistance up to the critical reverse breakdown voltage. When the zener tube is reversely broken down, the terminal voltage is almost unchanged within a certain current range, showing stable characteristics. Zener diodes are classified according to their breakdown voltage, and because of this characteristic, Zener diodes are mainly used as voltage regulators or voltage reference components. Zener diodes can be connected in series for use at higher voltages.

Send email to us

Product Detail

Monitoring response time

Measuring range

Product Tags

Advantages of YUNYI's Zener Diode:

1. Yunyi's Zener Diode has strong ability of reverse surge.

2. Competitive cost with high-level quality.

3. High production efficiency with short lead time.

4. Stable and reliable under various natural environments.

5. Small size, helping to optimize the circuit board space

Steps of Chip Production:

1. Mechanically Printing（Super-precise automatic wafer printing）

2. Automatic First-etching （Automatic Etching Equipment，CPK>1.67）

3. Automatic Polarity Test（Precise Polarity Test）

4. Automatic Assembly （Self-developed Automatic Precise Assembly）

5. Soldering (Protection with Mixture of Nitrogen & Hydrogen Vacuum Soldering )

6. Automatic Second-etching (Automatic Second-etching with Ultra-pure Water)

7. Automatic Gluing (Uniform Gluing & Precise Calculation are Realized by Automatic Precise Gluing Equipment)

8. Automatic Thermal Test (Automatic Selection by Thermal Tester)

9. Automatic Test(Multifunctional Tester)

Parameters:

Catalog P/N	Package?	Pd Mw	VZ V	IZT mA	?IR μA	?VR V	ZZT Ohms	ZZK Ohms	IZK mA
1SMA4741	SMA	1000	11	23	5	8.4	8	700	0.25
1SMA4742	SMA	1000	12	21	5	9.1	9	700	0.25
1SMA4743	SMA	1000	13	19	5	9.9	10	700	0.25
1SMA4744	SMA	1000	15	17	5	11.4	14	700	0.25
1SMA4745	SMA	1000	16	15.5	5	12.2	16	700	0.25
1SMA4746	SMA	1000	18	14	5	13.7	20	750	0.25
1SMA4747	SMA	1000	20	12.5	5	15.2	22	750	0.25
1SMA4748	SMA	1000	22	11.5	5	16.7	23	750	0.25
1SMA4749	SMA	1000	24	10.5	5	18.2	25	750	0.25
1SMA4750	SMA	1000	27	9.5	5	20.6	35	750	0.25
1SMA4751	SMA	1000	30	8.5	5	22.8	40	1000	0.25
1SMA4752	SMA	1000	33	7.5	5	25.1	45	1000	0.25
1SMA4753	SMA	1000	36	7	5	27.4	50	1000	0.25
1SMA4754	SMA	1000	39	6.5	5	29.7	60	1000	0.25
1SMA4755	SMA	1000	43	6	5	32.7	70	1500	0.25
1SMA4756	SMA	1000	47	5.5	5	35.8	80	1500	0.25
1SMA4757	SMA	1000	51	5	5	38.8	95	1500	0.25
1SMA4758	SMA	1000	56	4.5	5	42.6	110	2000	0.25
1SMA4759	SMA	1000	62	4	5	47.1	125	2000	0.25
1SMA4760	SMA	1000	68	3.7	5	51.7	150	2000	0.25
1SMA4761	SMA	1000	75	3.3	5	56	175	2000	0.25
1SMA4762	SMA	1000	82	3	5	62.2	200	3000	0.25
1SMA4763	SMA	1000	91	2.8	5	69.2	250	3000	0.25
1SMA4764	SMA	1000	100	2.5	5	76	350	3000	0.25
1SMA4741-GT3	SMA	1000	11	23	5	8.4	8	700	0.25
1SMA4742-GT3	SMA	1000	12	21	5	9.1	9	700	0.25
1SMA4743-GT3	SMA	1000	13	19	5	9.9	10	700	0.25
1SMA4744-GT3	SMA	1000	15	17	5	11.4	14	700	0.25
1SMA4745-GT3	SMA	1000	16	15.5	5	12.2	16	700	0.25
1SMA4746-GT3	SMA	1000	18	14	5	13.7	20	750	0.25
1SMA4747-GT3	SMA	1000	20	12.5	5	15.2	22	750	0.25
1SMA4748-GT3	SMA	1000	22	11.5	5	16.7	23	750	0.25
1SMA4749-GT3	SMA	1000	24	10.5	5	18.2	25	750	0.25
1SMA4750-GT3	SMA	1000	27	9.5	5	20.6	35	750	0.25
1SMA4751-GT3	SMA	1000	30	8.5	5	22.8	40	1000	0.25
1SMA4752-GT3	SMA	1000	33	7.5	5	25.1	45	1000	0.25
1SMA4753-GT3	SMA	1000	36	7	5	27.4	50	1000	0.25
1SMA4754-GT3	SMA	1000	39	6.5	5	29.7	60	1000	0.25
1SMA4755-GT3	SMA	1000	43	6	5	32.7	70	1500	0.25
1SMA4756-GT3	SMA	1000	47	5.5	5	35.8	80	1500	0.25
1SMA4757-GT3	SMA	1000	51	5	5	38.8	95	1500	0.25
1SMA4758-GT3	SMA	1000	56	4.5	5	42.6	110	2000	0.25
1SMA4759-GT3	SMA	1000	62	4	5	47.1	125	2000	0.25
1SMA4760-GT3	SMA	1000	68	3.7	5	51.7	150	2000	0.25
1SMA4761-GT3	SMA	1000	75	3.3	5	56	175	2000	0.25
1SMA4762-GT3	SMA	1000	82	3	5	62.2	200	3000	0.25
1SMA4763-GT3	SMA	1000	91	2.8	5	69.2	250	3000	0.25
1SMA4764-GT3	SMA	1000	100	2.5	5	76	350	3000	0.25
